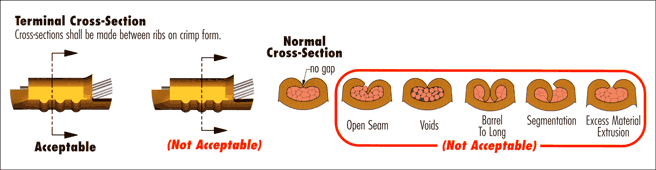

Terminal Cross Sections- Acceptable & Unacceptable
2012/5/21 view:
THE GOOD

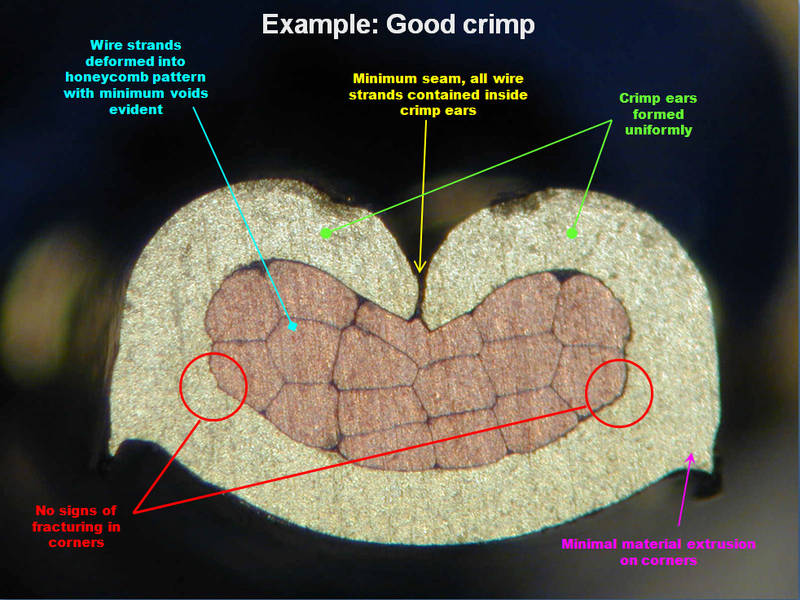

Cross Section of a Good Crimp
THE BAD AND THE UGLY

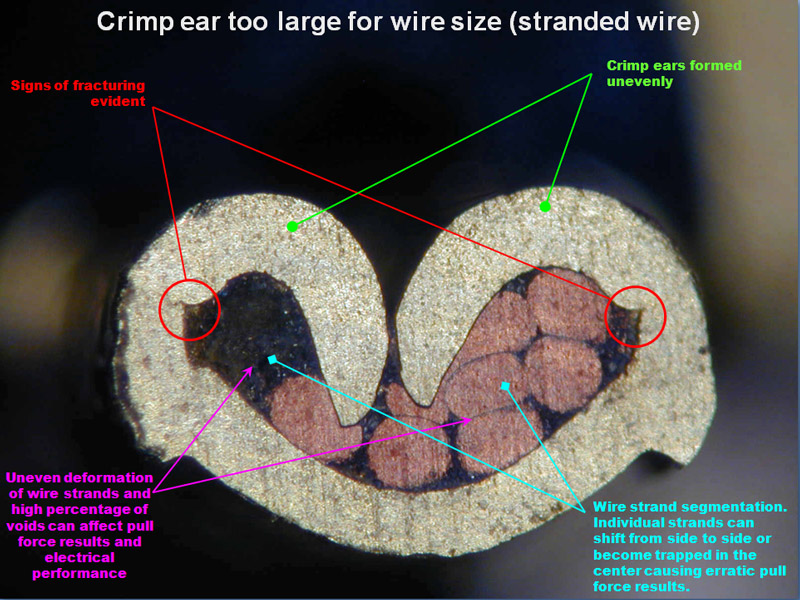

Crimp Ear Too Large – Stranded Wire

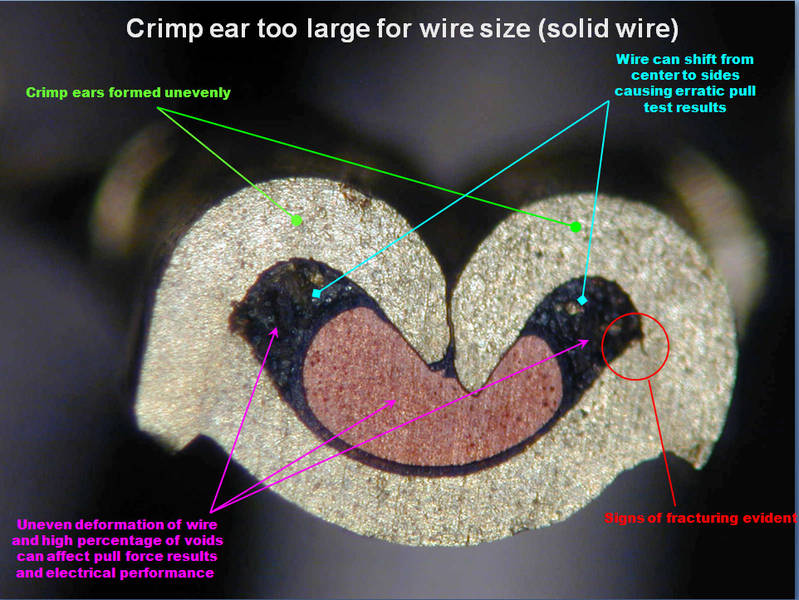

Crimp Ear Too Large – solid Wire

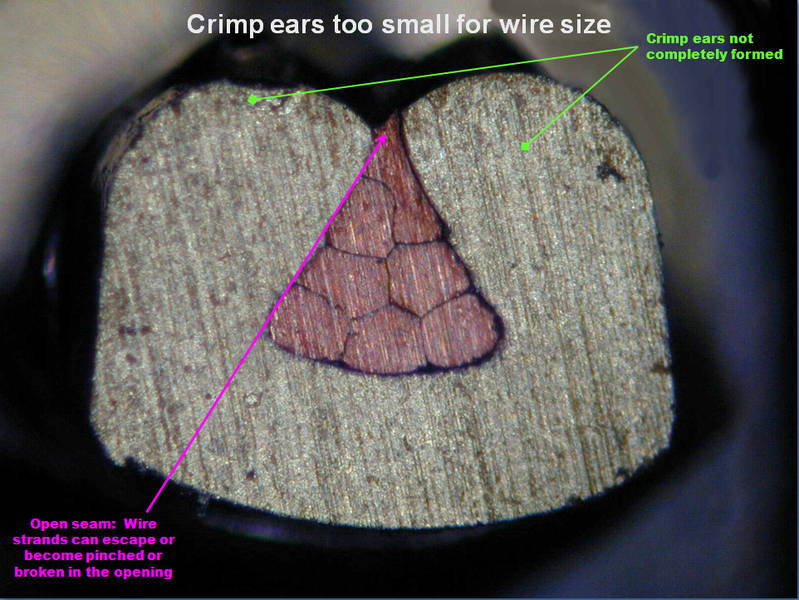

Crimp Ears Too Small for Wire Size

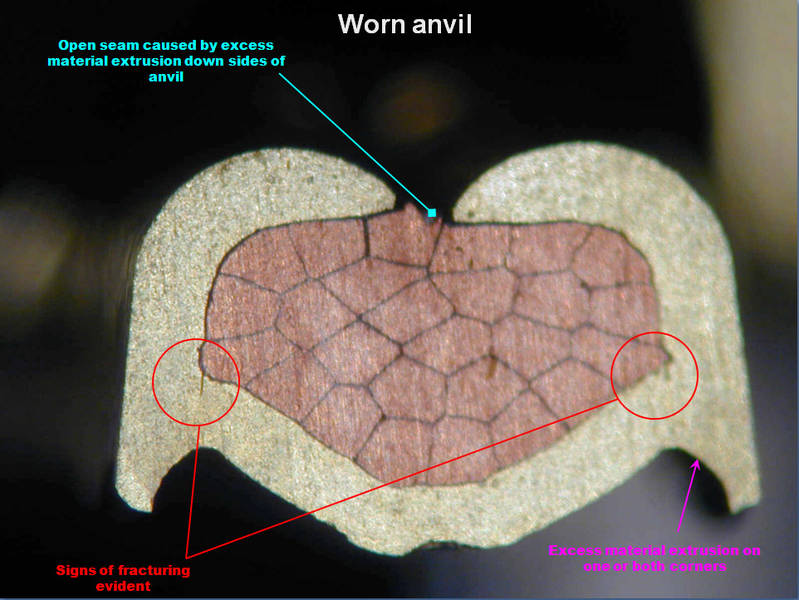

Worn Anvil

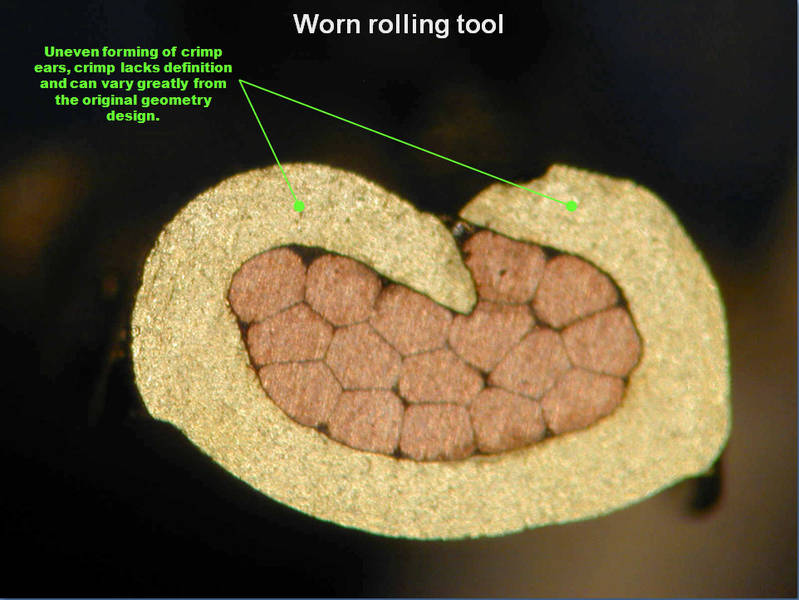

Worn Rolling Tool

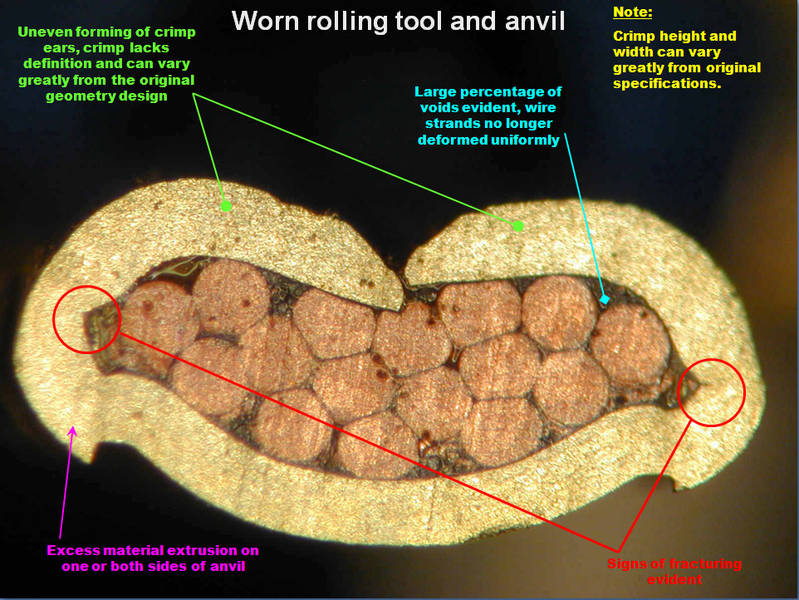

Worn Rolling Tool & Anvil

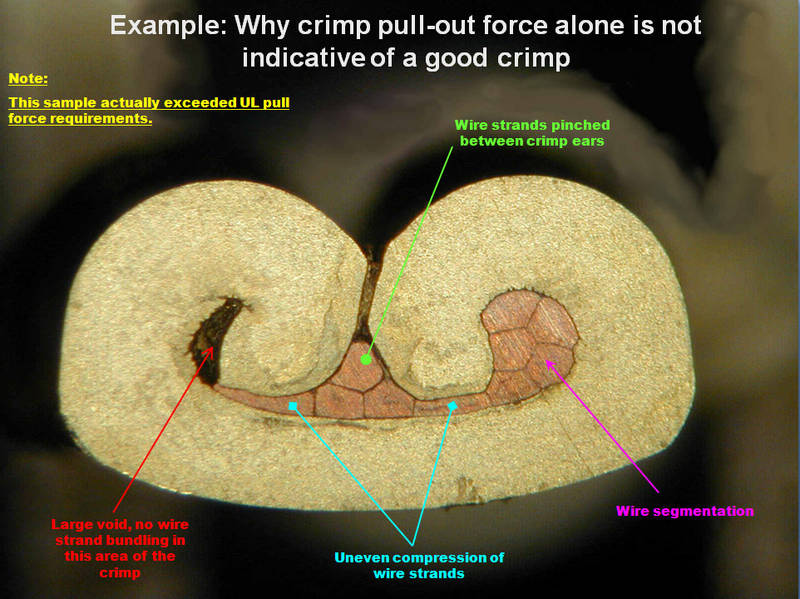

Why Pull-out Force Alone Is Not Indicative of a Good Crimp

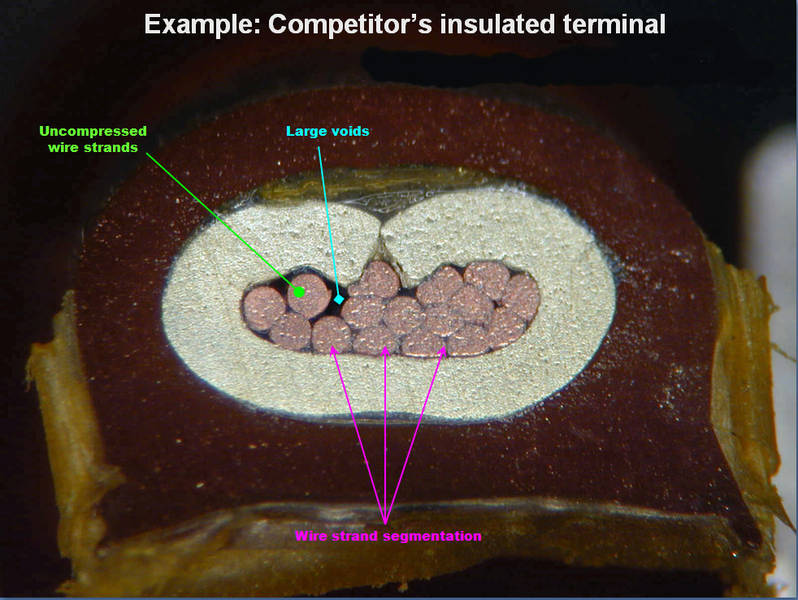

Example of an Unacceptable Insulated Crimp
CRIMPING PROCESS, SLOW MOTION
